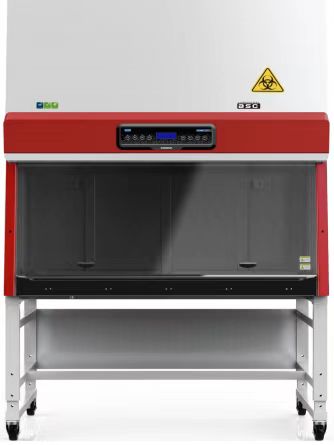

Laminar Flow Cabinet

1. Exterior of cold rolled steel or better material with anti-corrosion coating

Interior work surface of Type 304 stainless steel material or better

2. Ambient air/ inflow prevented from mixing with clean air/cabinet work zone

3. High capacity motor/blower system

4. Average inflow velocity of approx. 0,5 m/s (100 fpm) or better

5. Average down flow velocity approx. 0,3 m/s (60 fpm) or better

6. 70% air recirculated; 30% exhausted from a common plenum to the room

7.Exhaust and intake HEPA or ULPA filters with filter efficiency of at least 99,99% MPPS

8.Supply and exhaust HEPA or ULPA filters

9.Light sources providing at least 800 lux light intensity

10.Height-adjustable angled transparent front panel made of at least 6mm UV-resistant glass or better material with a secure gasket and seal when in place.

11. Control Panel for time, set-up and monitoring air velocity via sensors

12. Audible and visual alarm system for compromised airflow

13. Stainless steel filter screen and removable work tray (work surface) for easy cleaning and decontamination

14. Possibility to connect electrical devices in the cabinet, at least 2 waterproof EU standard sockets

15.Includes ultraviolet (UV) lights in work area with timing function

16. Sound emission <60 dBA

17.Designed and manufactured according to ANSI/NSF 49 or/and EN 12469 standards, with valid certificates confirming compliance with these standards.

18. Internal working area dimensions approx. (W x D x H, in mm): 1500 x 600 x 750, permissible deviation in width +/-10%, in depth and height +/-15%

19. Compatible stand for BSC installation, featuring casters and a position-locking function

20. Components, spare parts, consumables: One set of spare intake and exhaust HEPA or ULPA filter(s) and spare prefilter(s) (if applicable).

21.Power supply: 220 V ± 10 %, 50/60 Hz, Europian standard plug.
